Introduction

In modern industrial and commercial electrical systems, safety and control are critical. One of the most recognizable and essential components used to ensure quick operator intervention is the mushroom push button switch. Known for its large, rounded actuator head, this type of switch is widely used in emergency and control applications where visibility and accessibility are key.

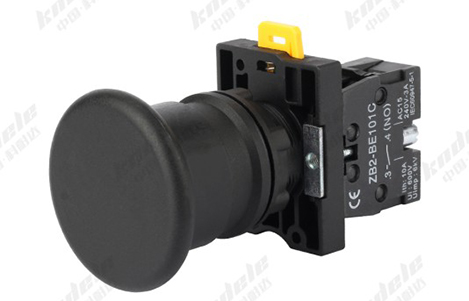

What Is a Mushroom Push Button Switch?

A mushroom push button switch is a type of manual control switch characterized by its oversized, mushroom-shaped actuator. The large head makes it easy to locate and operate quickly, even in high-stress or emergency situations.

These switches are commonly used as:

Emergency stop (E-stop) buttons

Safety shut-off controls

Machine start/stop controls in industrial systems

Their design prioritizes fast response, high visibility, and user safety, making them indispensable in environments where immediate action is required.

Key Components of a Mushroom Push Button Switch

A typical mushroom push button switch consists of the following parts:

Actuator (Mushroom Head)

Large, rounded button for easy pressing

Often colored red for emergency use

Designed for quick and unmistakable identification

Contact Block

Contains electrical contacts (normally open or normally closed)

Responsible for making or breaking the circuit

Mounting Base

Secures the switch to control panels or enclosures

Ensures stability during operation

Latching Mechanism (Optional)

Allows the button to stay in a pressed position until reset

Common in emergency stop applications

How Does a Mushroom Push Button Switch Work?

The working principle of a mushroom push button switch is straightforward but highly reliable.

Step-by-Step Operation:

Normal State
The switch remains in its default position, with contacts either open or closed depending on the design.

Actuation (Button Pressed)
When the operator presses the mushroom head:

Mechanical force is transmitted to the internal mechanism

The contact block changes state (open ↔ closed)

The electrical circuit is either interrupted or completed

Latching (If Applicable)
In emergency stop switches:

The button locks into the pressed position

The circuit remains interrupted until manually reset

Resetting the Switch
Depending on the design:

Twist-to-release

Pull-to-reset

Key-release mechanism

Types of Mushroom Push Button Switches

Emergency Stop (E-Stop) Switches

Typically red with a yellow background

Latching mechanism included

Used to immediately shut down machinery

Momentary Mushroom Switches

Only active while being pressed

Returns to original position when released

Used for non-critical control functions

Maintained (Latching) Switches

Stay in position after activation

Require manual reset

Ideal for safety-critical operations

Common Applications

Mushroom push button switches are widely used across multiple industries:

Industrial machinery – emergency shutdown of equipment

Automation systems – control of production lines

Elevators and escalators – emergency stop controls

Conveyor systems – quick halt during faults

Control panels – operator interface for critical actions

Advantages of Mushroom Push Button Switches

Enhanced Safety

Large actuator allows immediate access during emergencies

High Visibility

Bright colors and distinct shape reduce response time

Reliable Operation

Simple mechanical design ensures consistent performance

Easy Installation

Compatible with standard control panel cutouts

Versatility

Available in various configurations for different applications

Important Considerations When Choosing One

When selecting a mushroom push button switch, consider:

Function type (momentary vs latching)

Contact configuration (NO/NC)

Voltage and current rating

Environmental protection (IP rating for dust/water resistance)

Compliance with safety standards

Conclusion

A mushroom push button switch is more than just a simple control device—it is a critical safety component in modern electrical and industrial systems. Its intuitive design, fast operation, and high reliability make it essential for protecting both equipment and personnel.

Whether used as an emergency stop or a general control interface, understanding how these switches work helps ensure proper selection, installation, and operation in any application.

FAQ

1. Why are mushroom push buttons usually red?

Red is universally recognized as a warning or emergency color, making it easier to identify in urgent situations.

2. What is the difference between latching and momentary types?

Latching switches stay pressed until reset, while momentary switches return automatically when released.

3. Can mushroom push buttons be used outdoors?

Yes, if they have appropriate IP ratings (e.g., IP65 or higher) for protection against dust and water.

4. How do you reset an emergency stop button?

Most E-stop buttons use a twist-to-release or pull-to-reset mechanism.

5. Are mushroom push button switches required by safety standards?

Yes, many industrial safety regulations require emergency stop devices in machinery and control systems.

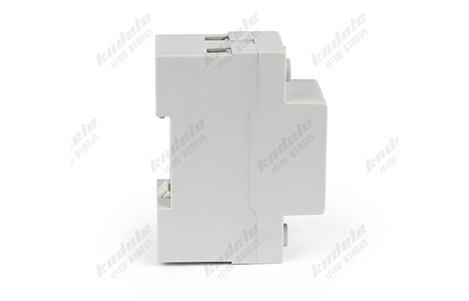

Introduction

Dual-Display Voltage Current Protectors (VDCPs) are essential devices for safeguarding electrical systems in industrial, commercial, and renewable energy applications. They provide real-time monitoring of voltage and current and automatically protect connected equipment from overvoltage, undervoltage, and overcurrent conditions.

Regular Visual Inspection

Start with routine visual checks to identify any obvious signs of wear or damage:

Check for cracks or discoloration on the housing

Inspect wiring for fraying or loose connections

Ensure the display screens are clean and fully functional

Verify Voltage and Current Readings

Periodic testing of the readings ensures the VDCP is functioning correctly:

Compare the voltage and current readings with a calibrated multimeter

Ensure the dual displays show consistent and accurate values

Look for flickering or unresponsive displays, which may indicate internal issues

Test Protection Functions

The primary purpose of a VDCP is to protect equipment from abnormal electrical conditions. Testing these protection features is essential:

Simulate overvoltage and undervoltage conditions to verify voltage protection

Introduce overcurrent conditions (within safe testing limits) to check current protection

Ensure the relay or circuit breaker responds accurately and promptly

Clean and Maintain the Display and Controls

Dust, moisture, and grime can interfere with the device’s display or buttons:

Use a soft, dry cloth to clean the screens and control surfaces

Avoid harsh chemicals that could damage the housing or display

Ensure ventilation slots are free from dust buildup to prevent overheating

Tighten Electrical Connections

Loose connections can cause inaccurate readings, arcing, or even device failure:

Periodically inspect all terminal screws and wiring connections

Tighten any loose terminals according to manufacturer specifications

Ensure all grounding connections are secure

Update Firmware or Calibration (if applicable)

Some modern VDCPs come with smart features or digital interfaces:

Check the manufacturer’s website for firmware updates

Perform recalibration as recommended in the user manual

Ensure that any integrated alarms or IoT monitoring features are functional

Monitor Environmental Conditions

VDCPs perform best under stable environmental conditions:

Avoid exposing the device to excessive heat, humidity, or direct sunlight

Ensure proper ventilation in control panels

Protect the device from vibration or mechanical shocks

Keep Maintenance Records

Maintain a log of inspections, tests, and any issues detected:

Record the date, findings, and any corrective actions

Include calibration or firmware update records

Use the log to identify trends or recurring issues

Conclusion

Proper maintenance of Dual-Display Voltage Current Protectors is essential to ensure long-term reliability, accurate monitoring, and consistent equipment protection. Regular inspections, cleaning, connection checks, and testing not only extend the device’s lifespan but also help prevent costly downtime or equipment damage.

FAQ

1. How often should I inspect a dual-display voltage current protector?

It is recommended to perform visual inspections and functional tests every 6–12 months, or more frequently in high-demand or harsh environments.

2. What should I check during a visual inspection?

Housing for cracks or discoloration

Wiring for frays or loose connections

Display screens for proper operation

Ventilation slots for dust buildup

3. How can I verify the accuracy of the voltage and current readings?

Use a calibrated multimeter to compare voltage and current readings. Ensure both displays show correct and stable values. Any flickering, delay, or incorrect reading may indicate a fault.

4. Should I test the protection functions?

Yes. Test overvoltage, undervoltage, and overcurrent protection functions periodically in a controlled environment to ensure the relay or breaker responds correctly.

5. How do I maintain the display and controls?

Clean the display with a soft, dry cloth

Avoid harsh chemicals or abrasive materials

Ensure buttons and control surfaces are free from dust and grime

6. How important are electrical connections?

Very important. Loose connections can cause inaccurate readings, arcing, or device failure. Periodically check and tighten all terminals according to manufacturer specifications.

7. Do I need to update firmware or calibration?

For modern digital VDCPs:

Check the manufacturer for firmware updates

Perform recalibration as recommended

Verify alarms and monitoring features are functional

8. Can environmental conditions affect VDCP performance?

Yes. Excessive heat, humidity, direct sunlight, vibration, or poor ventilation can affect sensor accuracy and device lifespan. Ensure a stable and protected operating environment.

9. Should I keep maintenance records?

Absolutely. Document all inspections, tests, calibrations, and corrective actions. Maintenance logs help identify trends, plan preventive maintenance, and comply with safety regulations.

10. What is the main benefit of regular maintenance for VDCPs?

Regular maintenance ensures long-term reliability, accurate monitoring, and consistent protection of electrical systems, preventing equipment damage and costly downtime.

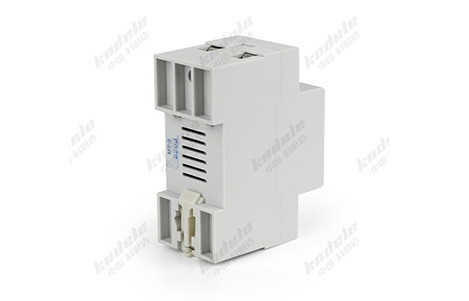

Introduction

As renewable energy adoption continues to grow, ensuring the safety, efficiency, and reliability of solar, wind, and energy storage systems has become more critical than ever. Renewable energy systems often involve sensitive electronics, variable loads, and fluctuating grid conditions, making them prone to voltage and current anomalies.

This is where Dual-Display Voltage Current Protectors (VDCPs) come into play. By monitoring both voltage and current simultaneously and providing automatic protection, VDCPs are essential components for maintaining the long-term performance and safety of renewable energy installations.

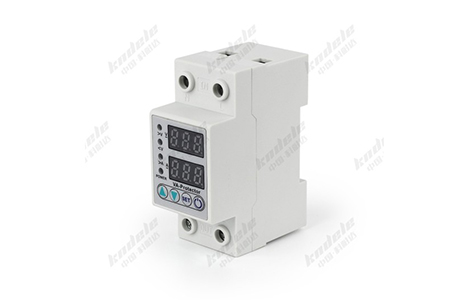

What Is a Dual-Display Voltage Current Protector?

A Dual-Display Voltage Current Protector is an electrical device that measures both voltage and current in real time. It features two separate displays for simultaneous readings and can automatically disconnect a load if abnormal conditions are detected, such as overvoltage, undervoltage, or overcurrent.

Key Components Include:

Voltage Sensor: Monitors the system voltage continuously.

Current Sensor: Tracks current flow to prevent overloads.

Dual Display: Digital LED or LCD screens show both voltage and current readings.

Relay/Protection Circuit: Trips automatically to safeguard connected devices.

Why Renewable Energy Systems Need Dual-Display Protectors

Renewable energy systems, especially solar PV and wind power installations, face unique challenges that make protection devices essential:

Fluctuating Input Voltage

Solar panels and wind turbines often produce variable voltage due to changing sunlight, shading, or wind speed. These fluctuations can damage inverters, batteries, and controllers if left unchecked.

How VDCP Helps: Monitors real-time voltage and disconnects the load when thresholds are exceeded, preventing equipment damage.

Overcurrent Protection

Renewable energy systems are connected to inverters and batteries that can draw or supply high currents. Unexpected overcurrent events can overheat conductors or cause battery failure.

How VDCP Helps: Tracks current flow and triggers automatic disconnection when limits are surpassed, protecting expensive components.

Battery and Storage System Safety

Batteries are sensitive to both overvoltage and overcurrent conditions. Overcharging or excessive discharge can reduce battery lifespan or even cause thermal runaway.

How VDCP Helps: Provides precise voltage and current monitoring for batteries, ensuring safe charging and discharging cycles.

Protection Against Grid Disturbances

Renewable systems connected to the grid can experience surges, sags, or momentary faults. These disturbances may damage inverters or compromise system performance.

How VDCP Helps: Detects abnormal voltage or current conditions instantly and isolates the system to prevent cascading failures.

Real-Time Monitoring and Operational Efficiency

Dual-display protectors provide instant visual feedback on both voltage and current, allowing operators to identify abnormal conditions before they become critical.

Benefit: Enables proactive maintenance, reduces downtime, and maximizes system efficiency.

Common Renewable Energy Applications for VDCPs

Solar PV Systems: Protect inverters, charge controllers, and batteries from voltage spikes and overcurrent.

Wind Turbine Installations: Safeguard variable-speed turbines and electrical control systems.

Hybrid Energy Systems: Ensure stable operation where solar, wind, and battery storage are integrated.

Energy Storage Facilities: Monitor high-capacity battery banks and prevent overvoltage or overcurrent damage.

Conclusion

Dual-Display Voltage Current Protectors are critical components in renewable energy systems, providing comprehensive protection for sensitive equipment, enhancing operational reliability, and extending system lifespan.

By offering real-time monitoring of both voltage and current, automatic load disconnection, and customizable protection thresholds, VDCPs ensure renewable energy systems can operate safely and efficiently under variable conditions.

FAQ

1. Why are dual-display voltage current protectors important for renewable energy systems?

Renewable energy systems often involve variable voltage and current due to changing sunlight, wind, or load conditions. Dual-display protectors monitor both parameters in real time and automatically disconnect the system when abnormal conditions occur, protecting sensitive equipment like inverters, batteries, and controllers.

2. What types of renewable energy systems can use VDCPs?

Solar PV systems – protect inverters, batteries, and charge controllers

Wind turbines – safeguard variable-speed turbines and control systems

Hybrid energy systems – monitor and protect systems integrating solar, wind, and energy storage

Energy storage facilities – prevent overvoltage and overcurrent damage to battery banks

3. How does a dual-display protector prevent overvoltage and undervoltage damage?

It continuously measures system voltage, compares it to pre-set thresholds, and automatically disconnects the load or triggers alarms when the voltage goes above or below safe limits, preventing damage to inverters, batteries, or controllers.

4. Can dual-display protectors prevent overcurrent events?

Yes. They monitor current flow in real time and disconnect circuits if the current exceeds safe levels, preventing overheating, fire risks, or battery damage.

5. What are the benefits of having dual displays instead of a single display?

Dual displays allow operators to see both voltage and current simultaneously, providing a complete view of system health. This makes it easier to detect abnormalities early and reduces the risk of equipment failure.

6. Are dual-display protectors suitable for grid-connected systems?

Yes. They can detect voltage or current anomalies caused by grid disturbances, surges, or sags, and protect renewable energy equipment from potential damage.

7. Can the protection thresholds be adjusted?

Most VDCPs allow users to customize voltage and current limits to match the specific requirements of their renewable energy system, ensuring precise and reliable protection.

8. How often should VDCPs be maintained in renewable energy systems?

Regular inspection every 6–12 months is recommended. Check for correct readings, proper relay operation, any physical damage, and signs of overheating.

9. Do VDCPs replace circuit breakers or fuses?

Not entirely. While they provide overvoltage, undervoltage, and overcurrent protection, they should be used alongside circuit breakers or fuses for full protection against short circuits and extreme electrical faults.

10. What is the main advantage of using a dual-display voltage current protector in renewable energy systems?

It ensures safe, reliable, and efficient operation by monitoring both voltage and current in real time, preventing equipment damage, reducing downtime, and extending the lifespan of critical components like inverters and batteries.

Introduction

In today’s fast-paced industrial and commercial environments, ensuring the safety and reliability of electrical systems is critical. Fluctuations in voltage and current can damage sensitive equipment, cause downtime, or even create safety hazards. One solution widely adopted by engineers and facility managers is the Dual-Display Voltage Current Protector (VDCP).

Industrial Machinery Protection

Industrial facilities often operate heavy machinery, motors, and compressors that are highly sensitive to voltage and current variations.
Applications include:

Motors and Drives: Protect against overcurrent and voltage surges that could damage windings.

Conveyors and Production Lines: Prevent sudden shutdowns or equipment failures due to electrical anomalies.

Compressors and Pumps: Ensure continuous operation without overheating or overloading.

Benefit: By monitoring both voltage and current simultaneously, VDCPs reduce downtime, prevent costly repairs, and extend the lifespan of industrial equipment.

Commercial Building Electrical Systems

In commercial buildings, electrical stability is essential for lighting, HVAC, elevators, and other critical systems.
Applications include:

HVAC Systems: Prevent motor burnout or overcurrent damage to air conditioners and fans.

Elevators and Escalators: Ensure smooth operation and protect control circuits from voltage fluctuations.

Lighting Systems: Safeguard LED and fluorescent lighting from spikes that could shorten lifespan.

Benefit: VDCPs provide real-time data for building managers, allowing them to respond to abnormal conditions quickly and maintain operational efficiency.

Renewable Energy Systems

With the increasing adoption of solar panels, wind turbines, and energy storage systems, protecting sensitive equipment is more important than ever.
Applications include:

Solar PV Systems: Monitor voltage and current to prevent inverter and battery damage.

Wind Turbines: Protect against fluctuating grid conditions and sudden current surges.

Energy Storage Systems: Maintain battery health by detecting overcurrent and voltage anomalies.

Benefit: VDCPs ensure system reliability and prevent costly repairs in renewable energy installations.

Data Centers and IT Infrastructure

Data centers require uninterrupted power supply to ensure server uptime and protect sensitive electronics.
Applications include:

Server Rooms: Continuous monitoring prevents voltage spikes or current overloads.

UPS Systems: Protect uninterruptible power supplies from electrical faults.

Network Equipment: Safeguard switches, routers, and storage devices from overcurrent events.

Benefit: By providing early detection of abnormal electrical conditions, VDCPs help avoid service disruptions and maintain IT system integrity.

Manufacturing and Automation Facilities

Automation systems often involve robotics, PLCs, and complex machinery, all of which require stable electrical supply.
Applications include:

Robotics: Prevent motor or actuator failure due to voltage or current irregularities.

PLC Panels: Protect programmable logic controllers from surges that could corrupt operations.

Assembly Lines: Ensure continuous production without electrical interruptions.

Benefit: VDCPs provide both protection and real-time feedback, allowing technicians to quickly troubleshoot and optimize system performance.

Conclusion

Dual-Display Voltage Current Protectors are versatile devices that play a crucial role in modern industrial and commercial electrical systems. By monitoring both voltage and current simultaneously and providing automatic protection, VDCPs prevent equipment damage, minimize downtime, and enhance operational efficiency.

Whether in industrial machinery, commercial buildings, renewable energy systems, data centers, or automated manufacturing, VDCPs ensure the reliability and safety of electrical infrastructure.

FAQ

1. What are Dual-Display Voltage Current Protectors used for?

They are used to monitor both voltage and current in a circuit and automatically protect equipment from overvoltage, undervoltage, and overcurrent conditions. They are essential in industrial, commercial, and renewable energy applications.

2. Which industrial equipment can benefit from a dual-display protector?

Motors and drives

Compressors and pumps

Conveyor belts and automated production lines
These devices prevent overcurrent or voltage fluctuations from damaging sensitive industrial machinery.

3. How are dual-display protectors used in commercial buildings?

Protect HVAC systems, elevators, and lighting circuits from electrical surges

Monitor voltage and current in real time to prevent operational interruptions

Provide easy-to-read dual displays for facility managers

4. Can dual-display protectors be applied in renewable energy systems?

Yes, they are ideal for solar panels, wind turbines, and battery storage systems. They monitor electrical parameters and prevent damage to inverters, batteries, and other sensitive equipment.

5. Why are they important in data centers and IT infrastructure?

Dual-display protectors help maintain uninterrupted power to servers, switches, and storage devices. They prevent downtime caused by overcurrent or voltage spikes and protect sensitive electronics.

6. How do they improve operational efficiency in manufacturing facilities?

By monitoring electrical parameters in real time, VDCPs allow technicians to detect anomalies early, avoid equipment damage, and maintain continuous production without interruptions.

7. Can the voltage and current limits be customized?

Yes, most models allow users to set specific thresholds to match the requirements of different machines, circuits, or systems.

8. Do dual-display protectors replace standard circuit breakers?

Not completely. While they provide protection against overvoltage, undervoltage, and overcurrent, they are usually used alongside circuit breakers or fuses for full protection against short circuits.

Introduction

Modern electrical systems are becoming increasingly complex, with higher power demands and more sensitive equipment. Protecting these systems against voltage and current fluctuations is critical to ensure safety, reliability, and operational efficiency. One of the most effective solutions is the Dual-Display Voltage Current Protector (VDCP).

By simultaneously monitoring both voltage and current, these devices provide real-time insights and automatic protection, making them essential components in industrial, commercial, and renewable energy systems.

Key Features of Dual-Display Voltage Current Protectors

Dual Display for Voltage and Current

The most obvious feature is the dual display, which allows operators to read voltage and current simultaneously. This ensures a complete understanding of the electrical system without needing separate devices.

Voltage Display: Shows the current voltage in real time.

Current Display: Shows the current flowing through the circuit.

Digital LED or LCD: Provides clear and easy-to-read readings, even in low-light environments.

Real-Time Monitoring

Dual-display protectors continuously measure electrical parameters, allowing operators to detect abnormal conditions immediately. This feature is particularly useful for:

Preventing overvoltage and undervoltage conditions

Avoiding overcurrent damage

Ensuring equipment operates within safe parameters

Adjustable Protection Thresholds

Most VDCPs allow users to set custom voltage and current limits. This flexibility ensures protection tailored to specific equipment and system requirements. For example:

Overvoltage shutdown at 240V for a 220V system

Overcurrent protection for motors or transformers

Automatic Circuit Disconnection

When voltage or current exceeds preset limits, the device automatically triggers a relay or circuit breaker, disconnecting the load to prevent equipment damage. This feature ensures electrical safety without manual intervention.

Compact and User-Friendly Design

Modern dual-display protectors are designed to be compact, allowing installation in control panels or switchboards. The dual-display interface is intuitive, reducing operator errors and simplifying maintenance.

Optional Advanced Features

Some advanced models include:

Audible and visual alarms for fault conditions

Remote monitoring capabilities for integration with smart electrical systems

Data logging for tracking electrical trends over time

Benefits of Using Dual-Display Voltage Current Protectors

Enhanced Safety

By protecting against overvoltage, undervoltage, and overcurrent, VDCPs reduce the risk of electrical fires, equipment damage, and downtime, ensuring the safety of both personnel and assets.

Real-Time Insights

Dual-display protectors provide instant visibility into voltage and current, enabling operators to make informed decisions and respond quickly to abnormal conditions.

Operational Efficiency

With automatic disconnection and fault alerts, VDCPs minimize unscheduled downtime, helping maintain continuous operations in industrial and commercial settings.

Equipment Longevity

By preventing electrical stress, these devices extend the lifespan of motors, transformers, and other sensitive equipment, reducing maintenance costs.

Versatility

Dual-display protectors are suitable for a wide range of applications:

Industrial machinery and production lines

Commercial buildings and HVAC systems

Renewable energy systems (solar, wind, battery storage)

Data centers and IT infrastructure

Conclusion

In today’s modern electrical systems, where efficiency, safety, and reliability are crucial, Dual-Display Voltage Current Protectors offer a powerful solution. With their dual monitoring capability, real-time protection, and user-friendly design, these devices not only safeguard equipment but also optimize operational performance.

Investing in a VDCP ensures that your electrical systems remain safe, reliable, and efficient, whether in industrial, commercial, or renewable energy applications.

FAQ

1. What is a Dual-Display Voltage Current Protector?

A Dual-Display Voltage Current Protector is an electrical device that simultaneously monitors voltage and current in a circuit. It provides real-time readings on two displays and automatically protects connected equipment from overvoltage, undervoltage, and overcurrent conditions.

2. What are the key features of a dual-display protector?

Dual display screens for voltage and current

Real-time monitoring of electrical parameters

Adjustable protection thresholds for voltage and current

Automatic load disconnection when limits are exceeded

Optional features like alarms, remote monitoring, and data logging

3. How does a dual-display voltage current protector improve safety?

The device prevents electrical faults such as overvoltage, undervoltage, and overcurrent by automatically disconnecting the load. This reduces the risk of equipment damage, electrical fires, and unplanned downtime.

4. Can the voltage and current limits be customized?

Yes. Most models allow users to set specific voltage and current thresholds tailored to their system or equipment, ensuring optimal protection for a wide range of applications.

5. Where are dual-display protectors commonly used?

They are widely used in:

Industrial machinery and production lines

Commercial buildings (HVAC systems, elevators, lighting)

Renewable energy systems (solar panels, wind turbines, battery storage)

Data centers and IT infrastructure

6. What are the benefits of having a dual display instead of a single display?

A dual display allows operators to simultaneously monitor both voltage and current, providing a complete view of the electrical system. This reduces the chance of missing abnormal conditions and simplifies troubleshooting.

Introduction

In modern electrical systems, ensuring the safety and stability of equipment is critical. One device that plays a pivotal role in this process is the Dual-Display Voltage Current Protector (VDCP). By monitoring voltage and current simultaneously, it provides real-time protection against electrical faults, enhancing operational safety and extending equipment lifespan.

What Is a Dual-Display Voltage Current Protector?

A Dual-Display Voltage Current Protector is an electrical protection device designed to monitor both voltage and current parameters of an electrical circuit at the same time. Unlike single-function protectors, which monitor either voltage or current, a dual-display protector provides a comprehensive view of the electrical condition, displaying both values on two separate screens—typically a digital LED or LCD interface.

Key Components:

Voltage Sensor – Continuously measures the input voltage to detect overvoltage or undervoltage conditions.

Current Sensor – Measures load current to prevent overcurrent or short-circuit situations.

Dual Display Screen – Simultaneously shows voltage and current readings for easy monitoring.

Relay/Protection Mechanism – Automatically disconnects the circuit if measured values exceed predefined limits.

How Does a Dual-Display Voltage Current Protector Work?

The working principle of a dual-display voltage current protector is straightforward yet highly effective:

Continuous Monitoring: The device constantly measures both voltage and current in real time.

Threshold Detection: Pre-set limits for voltage and current are stored in the device. These can often be adjusted based on the specific application.

Automatic Protection: When the measured voltage or current exceeds these limits, the protector triggers a relay or circuit breaker to disconnect the load.

Visual Feedback: Both voltage and current readings are displayed simultaneously on the dual display, allowing operators to quickly assess electrical conditions.

Optional Features: Some models include alarms, remote monitoring capabilities, and integration with smart systems for advanced electrical management.

Example Scenario:
Imagine an industrial machine operating on a 220V supply. If the voltage surges to 250V due to grid fluctuations, the VDCP detects the overvoltage and immediately disconnects the machine, preventing damage. Similarly, if the current exceeds the rated load, the device protects against overheating or fire hazards.

Advantages of Using a Dual-Display Voltage Current Protector

Comprehensive Monitoring: Real-time dual readings reduce the risk of electrical damage.

Enhanced Safety: Automatic disconnection prevents accidents caused by overvoltage, undervoltage, or overcurrent.

Operational Efficiency: Continuous monitoring allows maintenance teams to respond proactively to abnormal conditions.

User-Friendly: Dual display makes it easier for operators to read and understand both voltage and current data simultaneously.

Versatility: Suitable for industrial machinery, commercial power distribution, renewable energy systems, and sensitive electrical equipment.

Applications of Dual-Display Voltage Current Protectors

Industrial Manufacturing: Protecting motors, compressors, and other heavy machinery from electrical faults.

Commercial Buildings: Safeguarding HVAC systems, elevators, and lighting circuits.

Renewable Energy Systems: Monitoring solar panels and wind turbines to prevent overcurrent and voltage fluctuations.

Data Centers: Ensuring uninterrupted power supply to servers and critical equipment.

Conclusion

A Dual-Display Voltage Current Protector is an essential device for modern electrical systems. By providing simultaneous voltage and current monitoring, it ensures both equipment safety and operational efficiency. Whether for industrial machinery, commercial installations, or renewable energy systems, investing in a VDCP can significantly reduce electrical risks and maintenance costs.

FAQ

1. What is a Dual-Display Voltage Current Protector?

A Dual-Display Voltage Current Protector is an electrical device that monitors both voltage and current in a circuit simultaneously. It provides real-time readings on two displays and automatically protects equipment from overvoltage, undervoltage, and overcurrent conditions.

2. How does a Dual-Display Voltage Current Protector work?

The device continuously measures the voltage and current using built-in sensors. When the measured values exceed preset safety limits, the protector triggers a relay or circuit breaker to disconnect the load, preventing equipment damage.

3. What are the main advantages of using a dual-display protector?

Real-time monitoring of both voltage and current.

Automatic protection against electrical faults.

Easy-to-read dual display for quick assessment.

Versatile for industrial, commercial, and renewable energy applications.

Helps prevent equipment failure and reduce maintenance costs.

4. Can the voltage and current limits be adjusted?

Yes. Most dual-display protectors allow users to set customized voltage and current thresholds according to the specific electrical system requirements. This flexibility ensures optimal protection for different equipment types.

5. Where are dual-display protectors commonly used?

They are widely used in:

Industrial machinery (motors, compressors, conveyors)

Commercial buildings (HVAC systems, lighting, elevators)

Renewable energy systems (solar panels, wind turbines)

Data centers and IT equipment

6. What types of displays are available?

Most devices use digital LED or LCD screens to show voltage and current readings simultaneously. Some advanced models also include backlighting, alarms, or remote monitoring interfaces.
